Curved Stairlifts in Greater Manchester

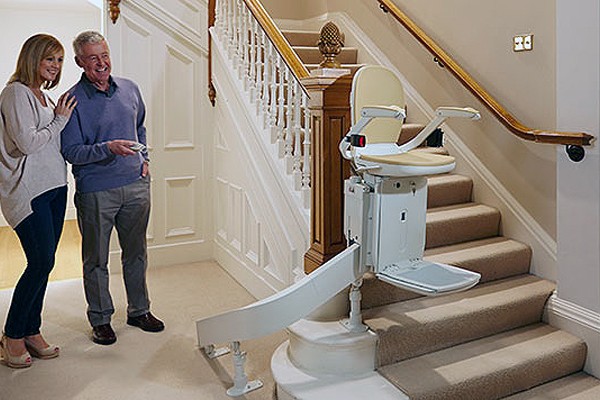

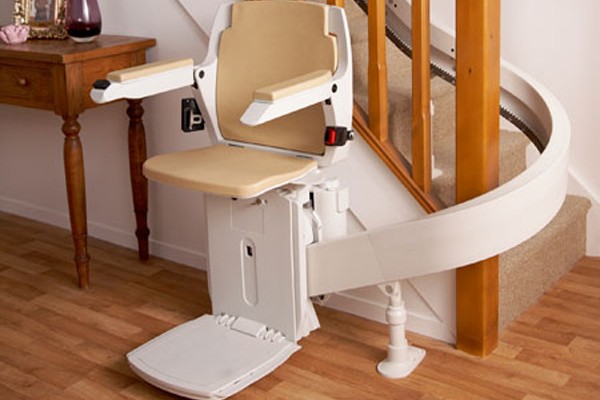

Brooks 180 Curved Stairlift

Currently available options:
  • New

Because every staircase is different, Brooks Stairlifts have been designed to be highly adaptable.

If your staircase has turns, intermediate landings or limited space at the top or bottom, it may be necessary for a curved staircase to be fitted.

Using a unique modular system, accurate measurements enable us to tailor-make a stairlift rail which closely follows the contour of your staircase, in days – not weeks.

Download Information Download Price List

Summary

  • Slimline yet spacious and comfortable
  • Simple to store – folding seat
  • Seatbelt as standard
  • Directional paddle switch – easy to use
  • Lockable for additional security
  • Lockable swivel seat
  • Two remote controls
Detailed Specification
  • Floor to top of footrest: 50mm
  • Top of footrest to top of seat: 485mm
  • Top of seat to top of arms: 245mm
  • Top of arms to top of seat back: 195mm
  • Width between armrests: 480mm
  • Overall width including seatbelt: 620mm
  • Overall height: 975mm
  • Length of arms from seat back: 460mm
  • Length of seat base from seat back: 435mm
  • Length of footrest: 360mm
  • Width of footrest: 375mm
  • Front of footrest to stringer: 640mm
  • Back of seat to stringer: 35mm
  • Folded depth: 335mm
  • Motor output speed: No greater than 0.15m/s
  • Method of Drive: Rack and Pinion
  • Power Supply: 24v DC (battery)
  • Maximum Capacity: 120Kg
  • Track: Extruded Aluminium
  • Mains Supply: 100 – 240v AC
